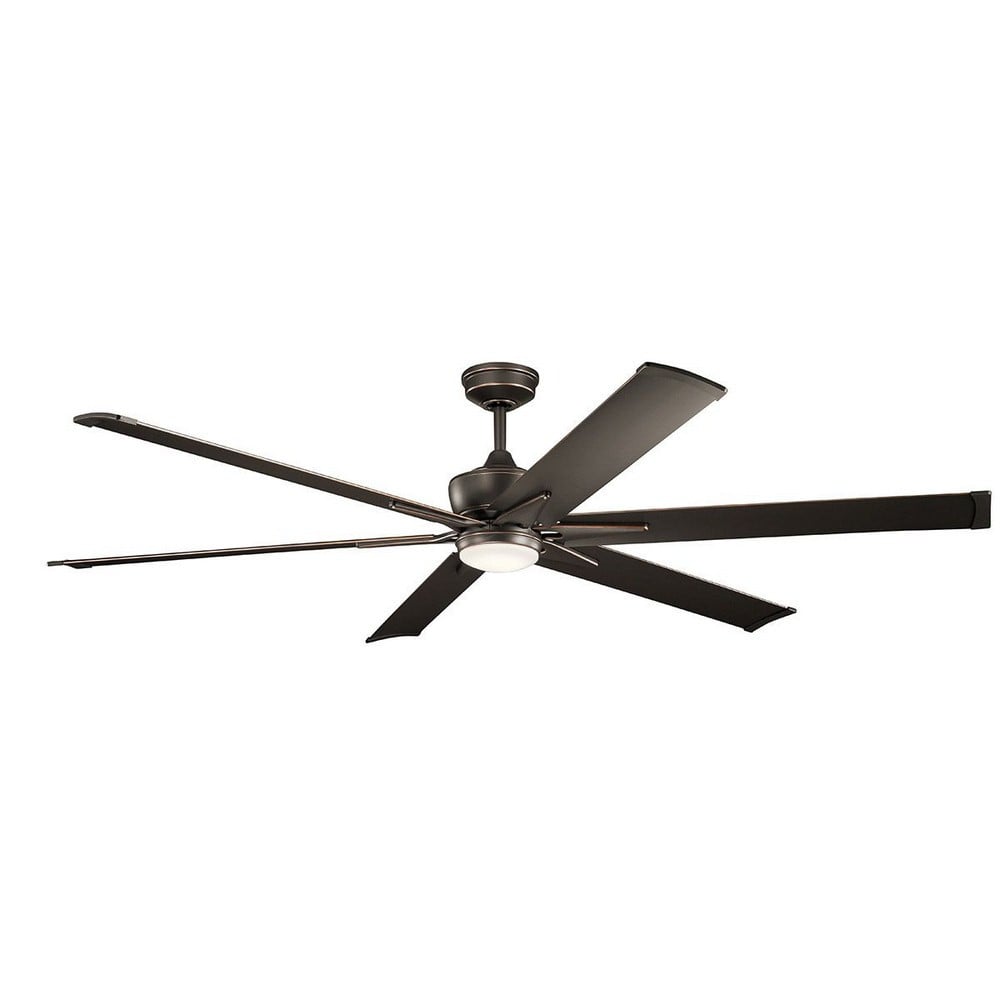

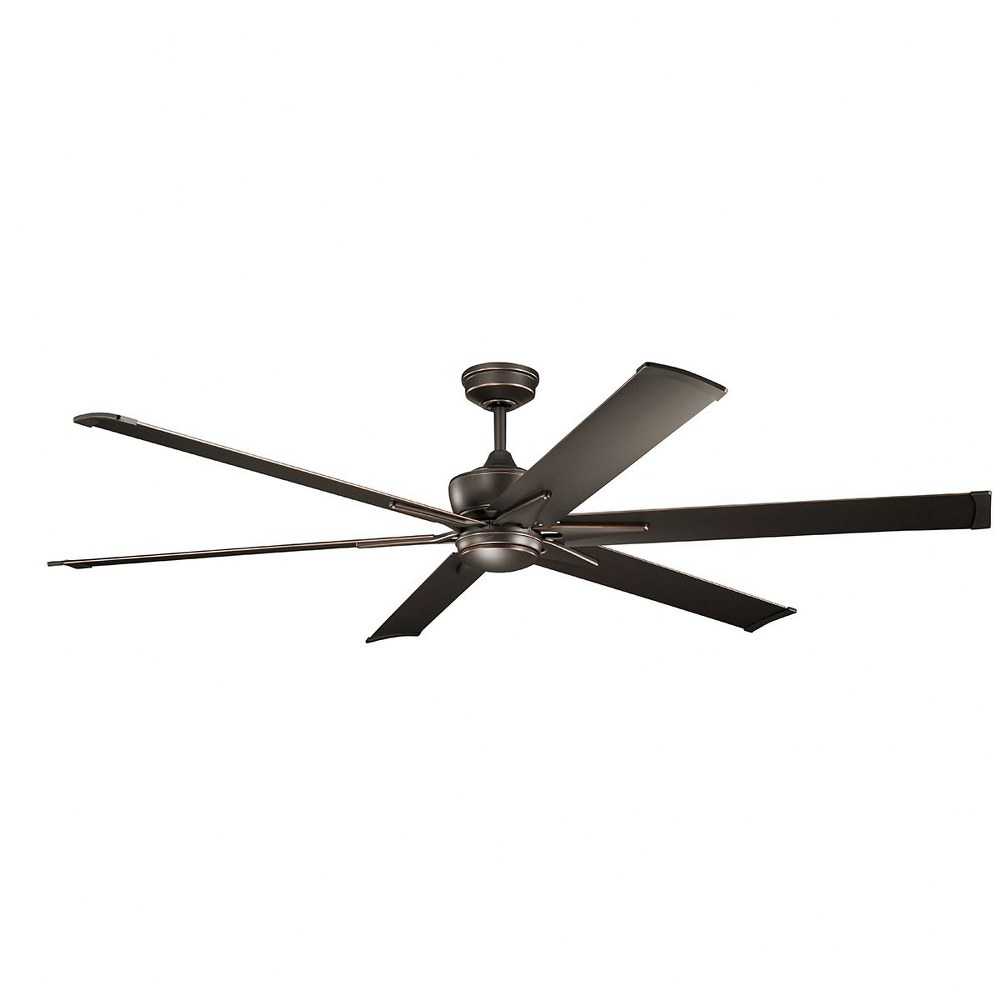

80 Inch Szeplo II LED Fan in OZ,in.Inspired by industrial machinery, This 80 Inch Szeplo ceiling fan in Olde Bronze lets you be the designer. Select the fan body and then choose blades - including weather-resistant models - for a look that matches your personal taste.

• Rod Length(s): 1-6
• Dimmable: Yes

Szeplo II Indoor/Outdoor Fan Dimensions

• Diameter: 96" Blade tip to blade tip
• Dimensions when using the included 6" down rod:
• Ceiling fan height: 16.25" From ceiling to bottom of the light kit.
• Blade drop Height: 14" From ceiling to the bottom most part of the fan blades.
• Housing width: 8.75"
• Ceiling canopy width: 6.75"
• Requires a 9' ceiling for proper mounting safety.
• Can be mounted on a ceiling up to a 30° (7/12 pitch).
• Slope ceiling adapter available for ceilings over 30°, 337005SBK

Motor Information

• Strong and efficient DC motor DC-165L
• 6 speeds forward and reverse
• The motor is covered under a limited lifetime warranty and is available in 3 designer colors. Olde bronze, Satin Black, Weathered Steel.

Fan Blades

• Szeplo in Satin Black comes with 6 simple clean line square tipped sleek blades.
• The blades are Satin Black color matched to the motor finish.
• The blade pitch is 13°
• The blade pitch creates an optimal airflow of 9890 CFM when used on the highest speed, while using only 35 watts of electricity!
• Lead wire 78"

Control

• Full function DC wall control is included with the fan. 6 Speeds forward and reverse.
• Lights on/off with full range dimming.
• No more than 2 fans on one circuit.
• Optional Cooltouch remote adaptable 371075

Light Kit

• Light kit is included on the fan.
• The downlight is an led replaceable module.
• Watts: 17
• Lumens: 1600
• CRI 80
• Color Temperature 3000k
• Glass is an Etched Cased Opal
• Cap is included for non light use.

Room Suggestion

• The Szepelo is the great choice for large spaces that are over 400 square feet.
• Recommended applications would be family or great rooms, large main suite, loft, gym or exercise areas, garage, barn, warehouse.
• Outdoor locations such as patios, porches, pergolas and decks.

Features

• UL listed for indoor and outdoor wet locations
• Available in 3 different finishes Olde bronze, Satin Black, Weathered Steel.
• Cool modern design with simple clean lines.
• Wall control included, hand held remote adaptable.
• 6" with 1" OD Down rod included
• Can be used with our without light kit.
• Wet location listed for direct water contact.

Seasonal Settings

• Reverse your fan blade direction with the change of seasons for maximum comfort and energy savings.
• Summer Setting - When looking directly up at your fan from below, the blades should be moving in a counter clockwise direction, pushing cool air down.
• Winter Setting - When looking directly up at your fan from below, the blades should be moving in a clockwise direction, pushing air upwards, circulating warm air from ceilings.
