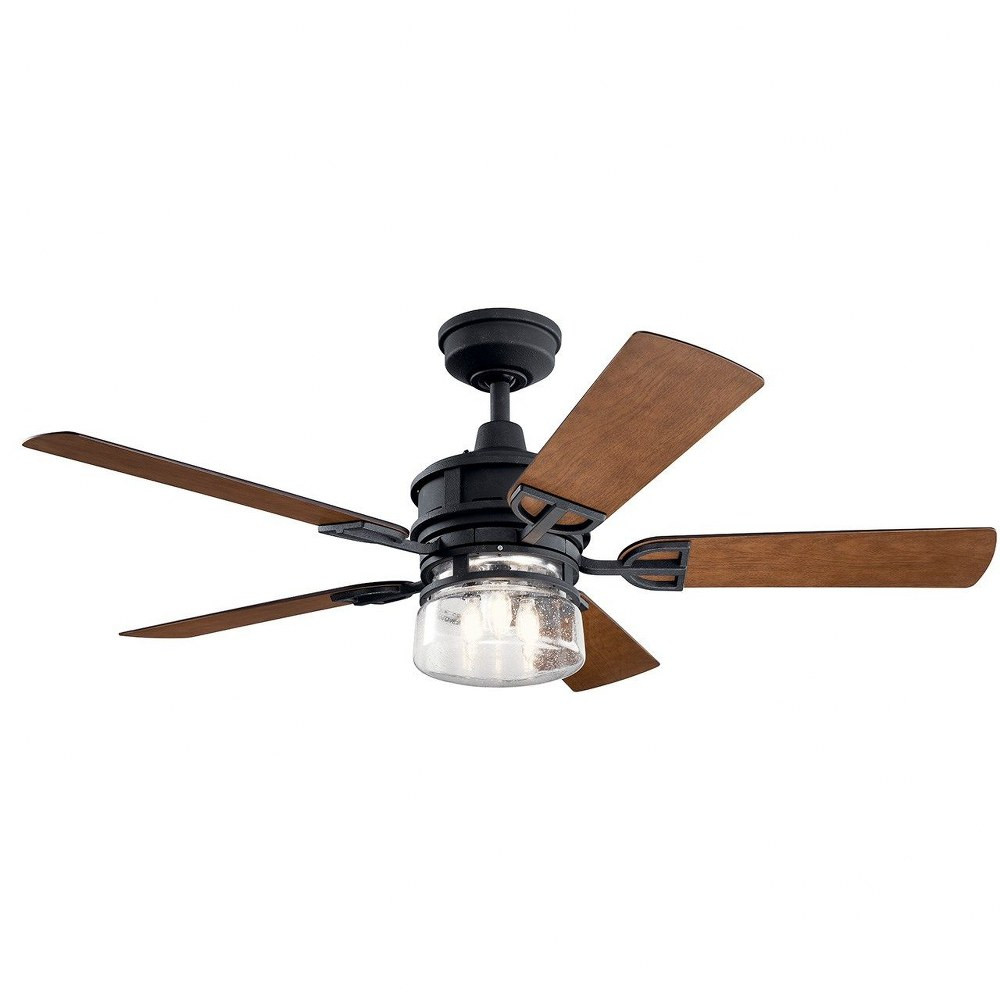

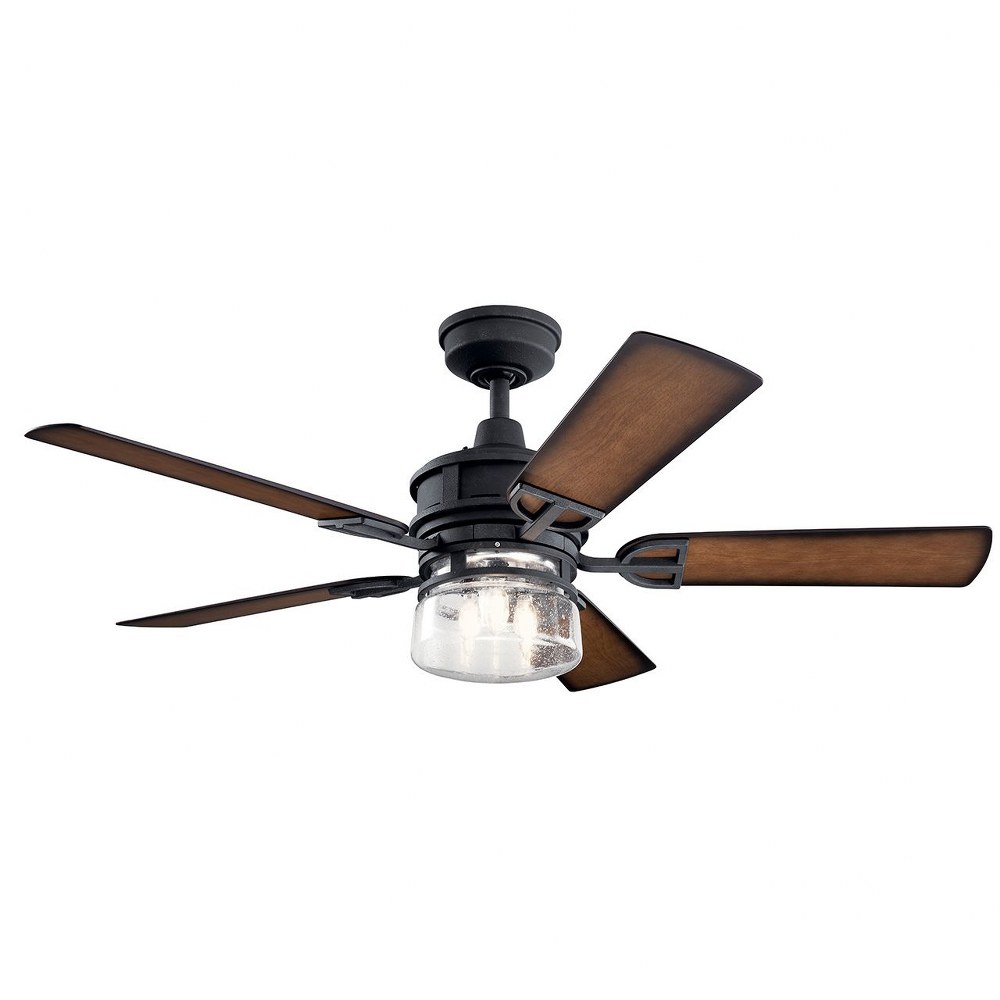

This 52in. Lyndon(TM) Patio LED ceiling fan in Distressed Black features a sleek, nautical style and clear, seeded glass.

• Rod Length(s): 1-4.5

Lyndon Patio Outdoor/Indoor Fan Dimensions

• Diameter: 52" Blade tip to blade tip
• Dimensions when using the included 4.5" down rod:
• Ceiling fan height: 19" From ceiling to bottom of the light kit.
• Blade drop Height: 13.25" From ceiling to the bottom most part of the fan blades.
• Housing width: 9.50"
• Ceiling canopy width: 6.75"
• Requires a 8' 6" ceiling for proper mounting safety.
• Can be mounted on a ceiling up to a 30° (7/12 pitch)
• Slope ceiling adapter available for ceilings over 30°, 337005DBK

Motor Information

• Strong and efficient AC motor 172mm X 15mm
• 3 speeds forward and reverse
• The motor is covered under a limited lifetime warranty and is available in 2 designer colors. Olde Bronze, Distressed Black.

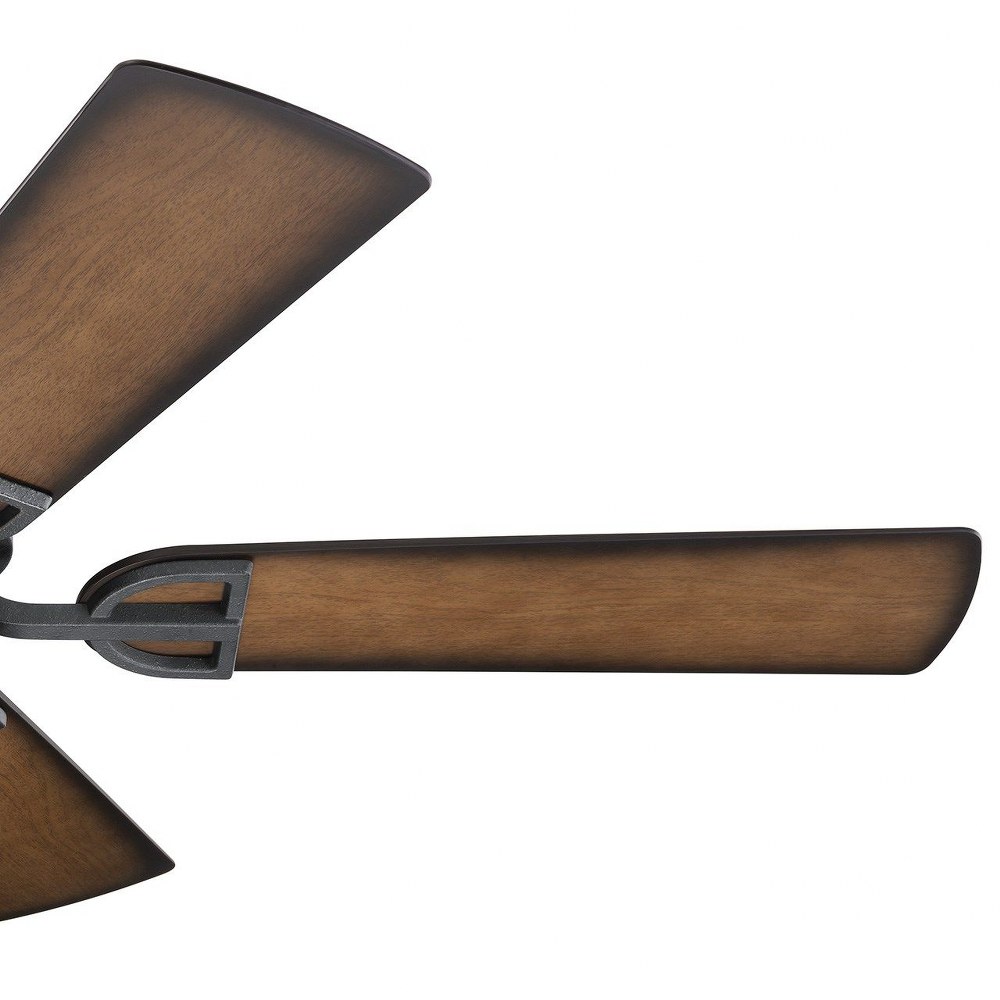

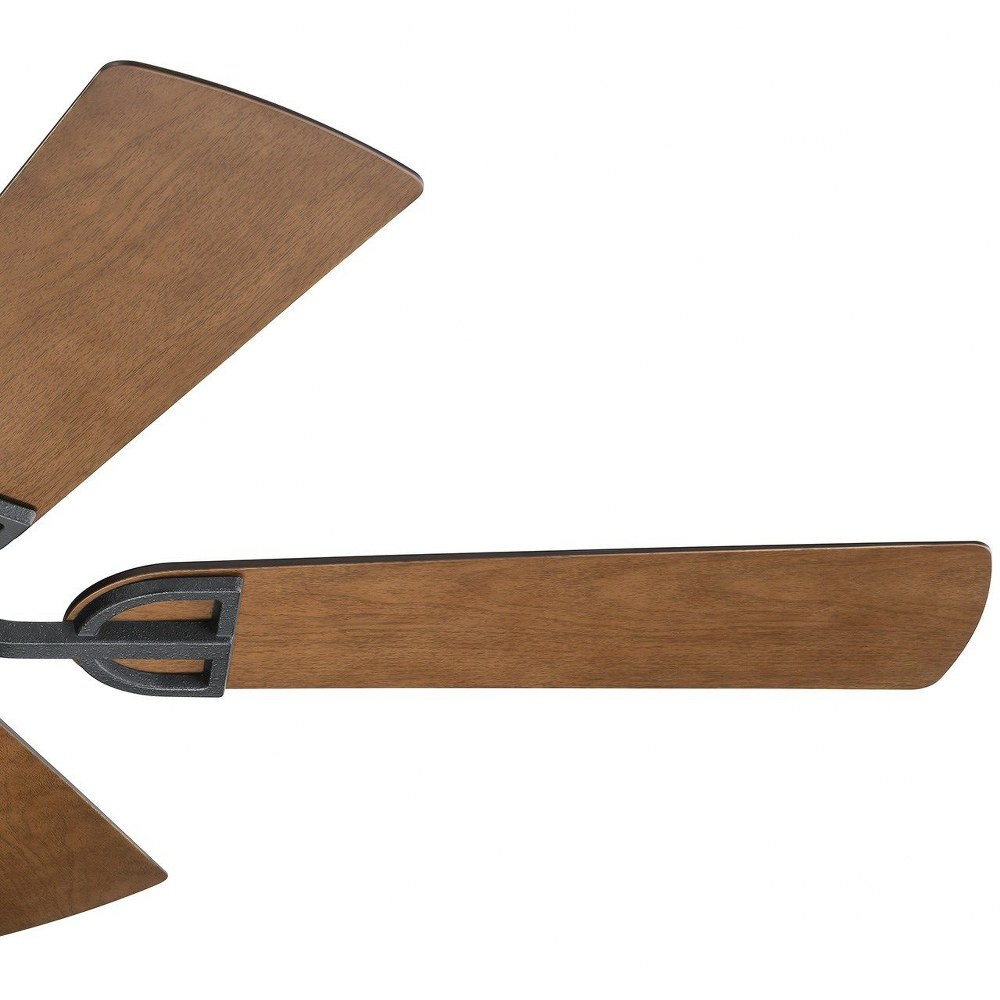

Fan Blades

• Lyndon Patio in Distressed Black comes with 5 straight edge clean line blades.
• The blades are reversible, Light walnut on one side, Walnut Shadowed on the other.
• The blade pitch is 13°
• The blade pitch creates an optimal airflow of 4946 CFM when used on the highest speed, while using only 65 watts of electricity!
• Lead wire 78"

Control

• Wall control is included with the fan. 3 Speeds forward and reverse.
• Lights on/off with full range dimming.
• Manual reverse switch located on the motor housing.
• Optional Cooltouch handheld/wall control adaptable 337214TR

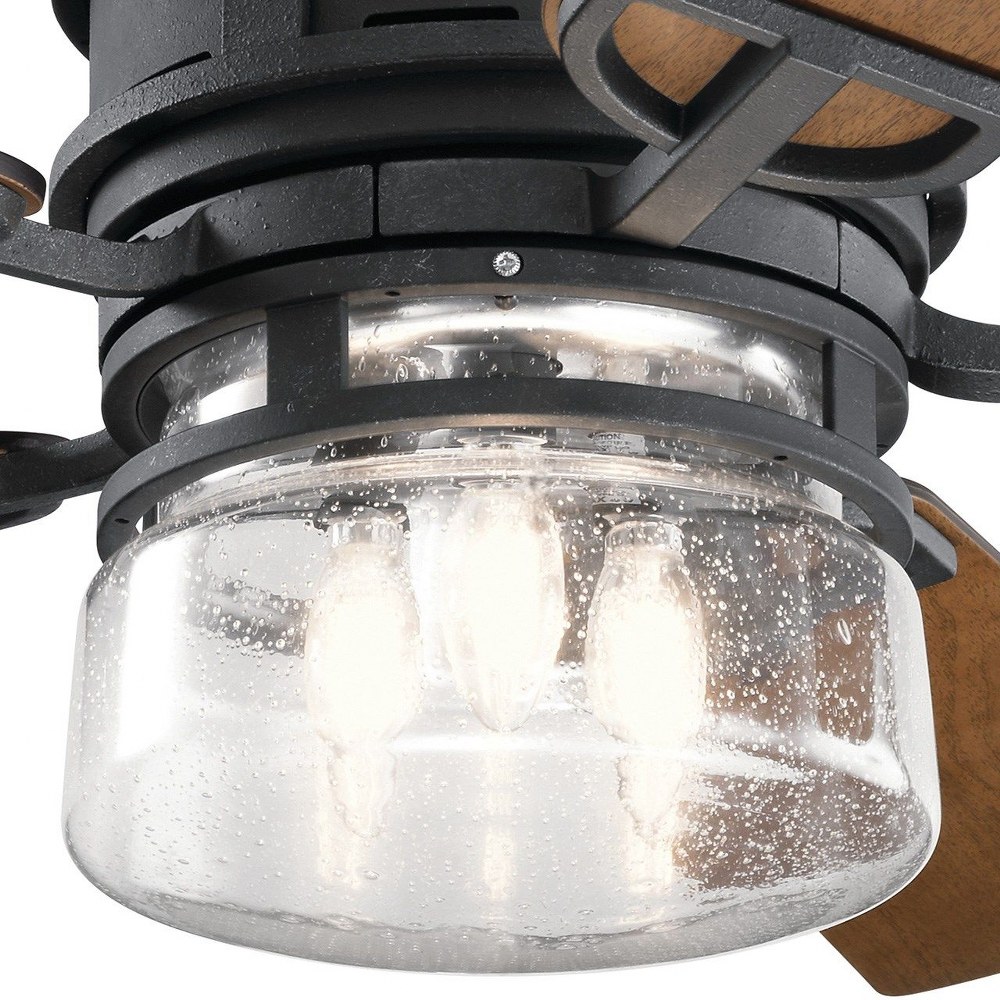

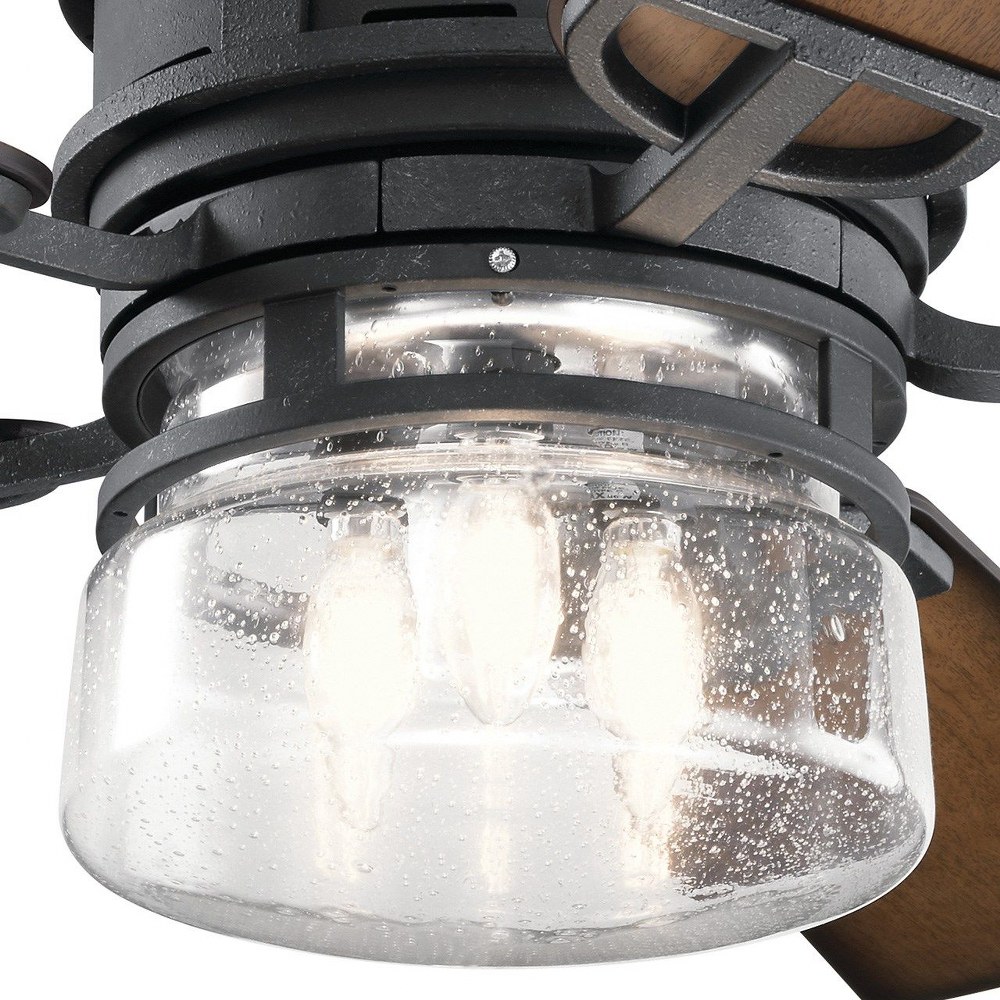

Light Kit

• Light kit included.
• Wattage: 15 watts total, 3 x 5watts each.
• Lumens: 1500
• CRI 90
• Color Temperature 2700K
• Glass is Clear Seeded
• Led bulbs are replaceable
• Supplied led bulbs are non dimmable.

Room Suggestion

• The Lyndon is the great choice for large indoor/outdoor spaces that are up to 400 square feet.
• Recommended indoor applications would be bedrooms, family rooms, great rooms, main suite, loft, bonus rooms, gyms or exercise areas.
• Recommended outdoor applications would be a patio, deck, pergola or porch.

Features

• UL listed for indoor/outdoor locations
• Available in 2 different finishes Olde Bronze and Distressed Black
• Modern rustic design with industrial accents.
• Wall control included.
• 4.5" with 1" OD Down rod included
• Outdoor pendant and wall fixtures available to match. 49496AZ, 49447AZ

Seasonal Settings

• Reverse your fan blade direction with the change of seasons for maximum comfort and energy savings.
• Summer Setting - When looking directly up at your fan from below, the blades should be moving in a counter clockwise direction, pushing cool air down.
• Winter Setting - When looking directly up at your fan from below, the blades should be moving in a clockwise direction, pushing air upwards, circulating warm air from ceilings.
